STEAM SCRAPPER ROTATING KHOA MACHINE KHOA MAKING MACHINE STEAM OPERATED SCRAPPER ROTATING GMP MODEL

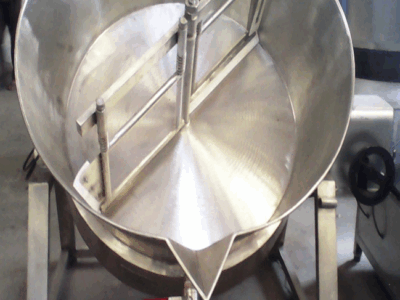

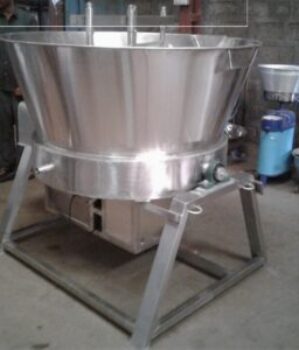

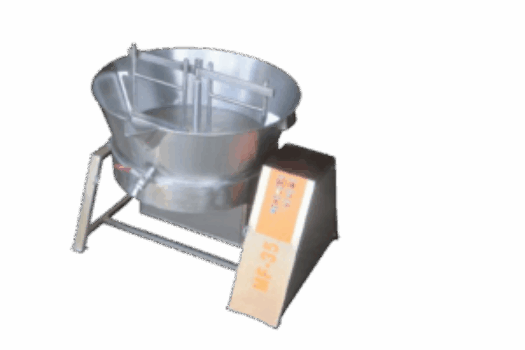

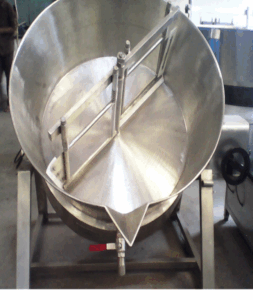

This Machine is available in Minimum Capacity from 60 ltr , 130 ltr , 180 ltr , 350 ltr ,500 ltr. It Shall be Jacketed, insulated scrapper rotating heat exchanger made from SS Bottom plate Milk is scraped promptly by rotating scrapper .The machine shall be driven by motor coupled to heavy duty gear box. Machine shall be complete with patented rotating system. Steam trap, Safety valve, pressure gauge, air vent and other Structure in Rectangle steel pipes & angles. Side cover in stainless steel. heat exchanger shall be balancing for superior tilting & tilting shall be mechanically by gear box.
| Capacity | 180 L | 350 L | 500 L |
|---|---|---|---|
| Vessel | 1.6mm | 1.6mm | 1.6mm |
| Bottom Plate | 14mm | 16mm | 18mm |
| Motor | 1HP | 1.5HP | 2HP |
| Size | 53*40*58 | 66*52*59 | 66*52*59 |
| Weight | 358 Kg | 425 Kg | 538 Kg |
| VFD Pannel | 2HP | 2HP | 2HP |
We have created informational video to demonstrate how the product works. We request you to kindly watch the video and give us a call if you require any further clarification.
